TFT LCD Display
OEM & ODM
High Quality TFT LCD Display Manufacturing
- 15 years TFT LCD Display manufacturing experiences.
- Full certification include ISO,RoHS,IATF.
- Low MOQ to support your start-up business.
- FPC can customized.
- Size from 0.42" to 15.6".
Customized TFT LCD Display Supplier
Santop,as a leading & professional TFT LCD Display factory,we specialize in TFT LCD Display from 0.42 inch to 15.6 inch,with different resolution,IC,FPC and so on. Meanwhile,our TFT LCD Display are made of high quality raw material,such as LCD glass,IC,FPC and backlight.
If you need to customize TFT LCD Display,you just need to provide your ideas and drawings,we will bring your vision to life. Contact us today for a free quote or more information.

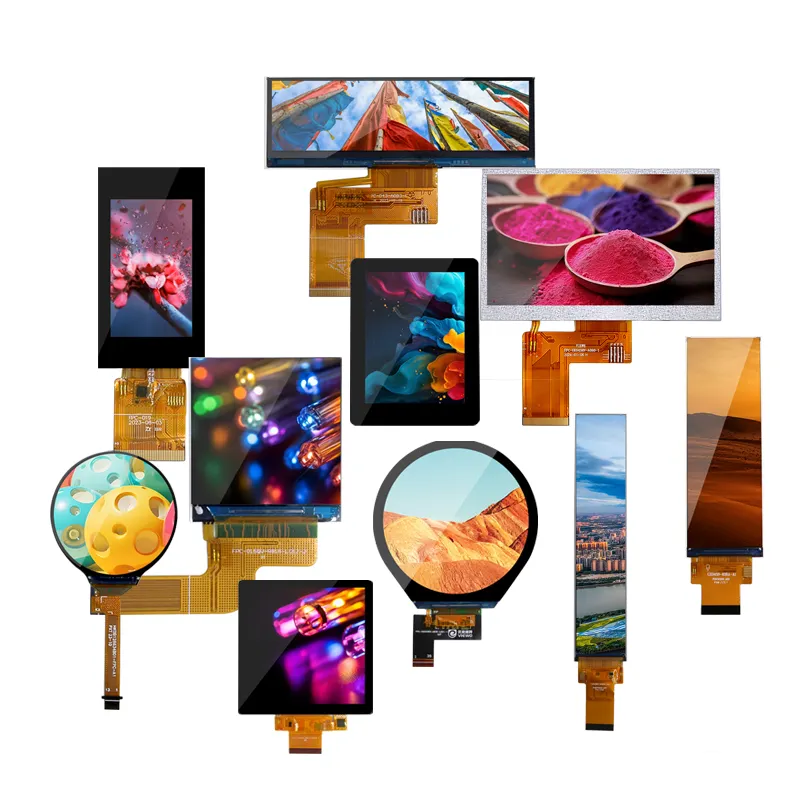

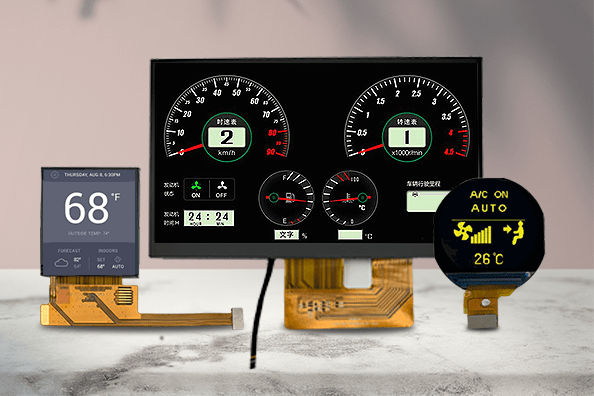

From standard rectangular to square, circular and stretched bar. Contact us to discuss your requirements.

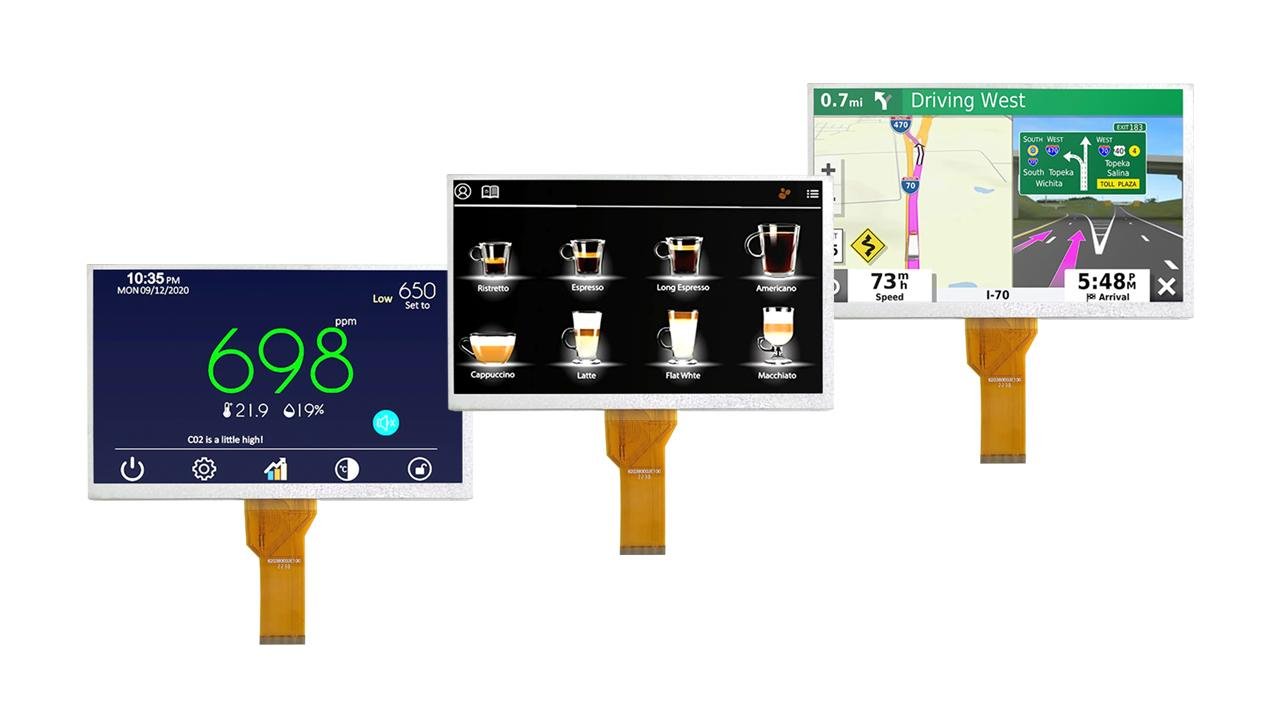

Santop offers a comprehensive range of TFT LCD Display Modules designed to meet the diverse needs of industrial, commercial, and consumer applications. Whether you’re sourcing for mass production or small-batch projects, our modules deliver high brightness, vivid colors, wide viewing angles, and stable performance.
With over 30 in-house production lines,Santop supports both standard models and fully customized displays, all backed by ISO-certified quality control and fast global delivery.
Product By Size
TFT LCD Display Application
TFT LCD have the following wide application,pls contact us for more solution.
For Industry & Manufacturing
For Medical Device
For Consumer Electronics
For Automotive Electronics
For Smart Terminals & IoT Devices
For Finance & Office Equipment
Feature of Santop TFT LCD Display
Santop can manufacture TFT LCD Display with different features based on your requirements, just send us your order details and get an instant quote.
High Resolution and Superior Image Quality
Each pixel is controlled by an individual transistor, delivering precise color reproduction and higher resolutions. Produces vibrant colors and detailed images, making it suitable for industries such as medical equipment, industrial devices, and navigation systems.
Fast Response Time
Enables quick pixel transitions, reducing motion blur and ghosting, ideal for dynamic content like videos and interactive interfaces.
Customization Options
Fully customizable for different sizes, shapes, and interfaces, including specialty designs like irregular shapes, sunlight-readable screens, and waterproof touchscreens. Supports viewing enhancements (O-Film or IPS panels) and backlight customization (brightness up to 3000 nits).
Adaptability to Harsh Environments
Operates within a wide temperature range (-40°C to 90°C), making it perfect for outdoor, industrial, and automotive applications. Features like shock resistance, waterproofing, anti-fingerprint, anti-reflective, and anti-salt fog coatings can be added.
Energy Efficiency
Advanced backlight technologies and panel optimization reduce power consumption while maintaining high brightness and clarity.
Durability and Reliability
Built with high-quality materials and robust engineering, ensuring long-term stability and performance. Meets stringent industrial and medical standards.
Factors to Consider When buy a TFT Display
When buying a TFT (Thin-Film Transistor) Display, there are several key factors you should consider to ensure the product matches your project or end-product needs. Here’s a complete checklist:
Display Size & Aspect Ratio
Choose the right screen size (measured diagonally in inches). Confirm the aspect ratio (e.g., 4:3, 16:9, 16:10) based on your design needs.
Resolution
Higher resolution offers sharper image quality. Choose depending on your application: QVGA (320x240) WVGA (800x480) HD (1280x720) or Full HD (1920x1080) for high-end applications.
Interface Type
MCU/Parallel (8-bit, 16-bit), RGB, LVDS, MIPI DSI, SPI/I2C for smaller TFTs. Choose based on your system compatibility.
Touch Panel Option
Resistive touch (for gloves or stylus use). Capacitive touch (for finger touch with multi-touch functionality). Or no touch if not needed.
Brightness
Measured in nits (cd/m²). For indoor: 200~400 nits. For outdoor or sunlight-readable applications: 700+ nits.
Viewing Angle
Consider wide viewing angles (IPS panels) for better color consistency. Standard TFT may have limited angles (TN panel).
Operating Temperature Range
Typical: -20°C to +70°C. Industrial or outdoor: -30°C to +85°C or wider range if needed.
Lifetime and Reliability
Backlight life (typically 20,000 to 50,000 hours). Confirm if it meets your product’s longevity needs.
Power Consumption
Important for battery-powered or energy-sensitive devices. Check backlight current and logic voltage (3.3V/5V).
Certifications
CE, RoHS, REACH, or other market-specific requirements. Important for export compliance (e.g., for Europe or North America).
Customization Options
Custom FPC (Flexible Printed Circuit) length. Logo printing on the display. Tailored touch sensitivity or optical bonding.
MOQ & Lead Time
Some factories have Minimum Order Quantities (MOQ). Check production lead time, especially if you have strict deadlines.
TFT LCD Display Manufacturing Processes

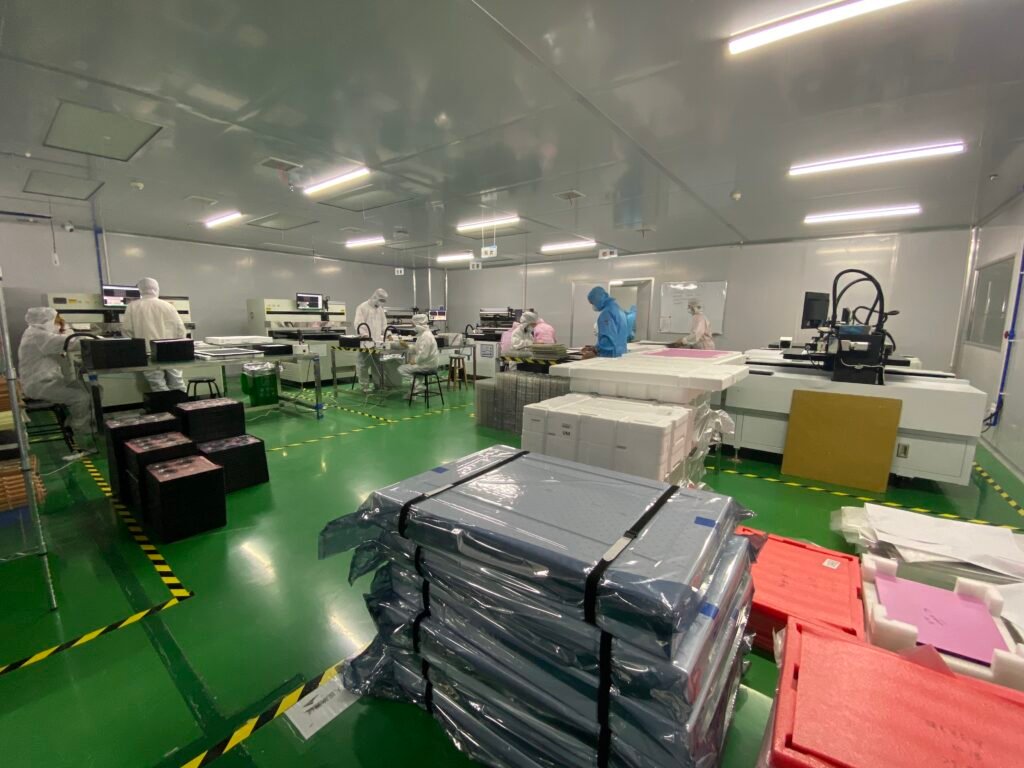

1.Mother Glass Cutting
The manufacturing process starts with large mother-glass panels, which are precisely cut into smaller pieces suitable for TFT modules. This step ensures that each display module will have the right dimensions and fit into its intended application.

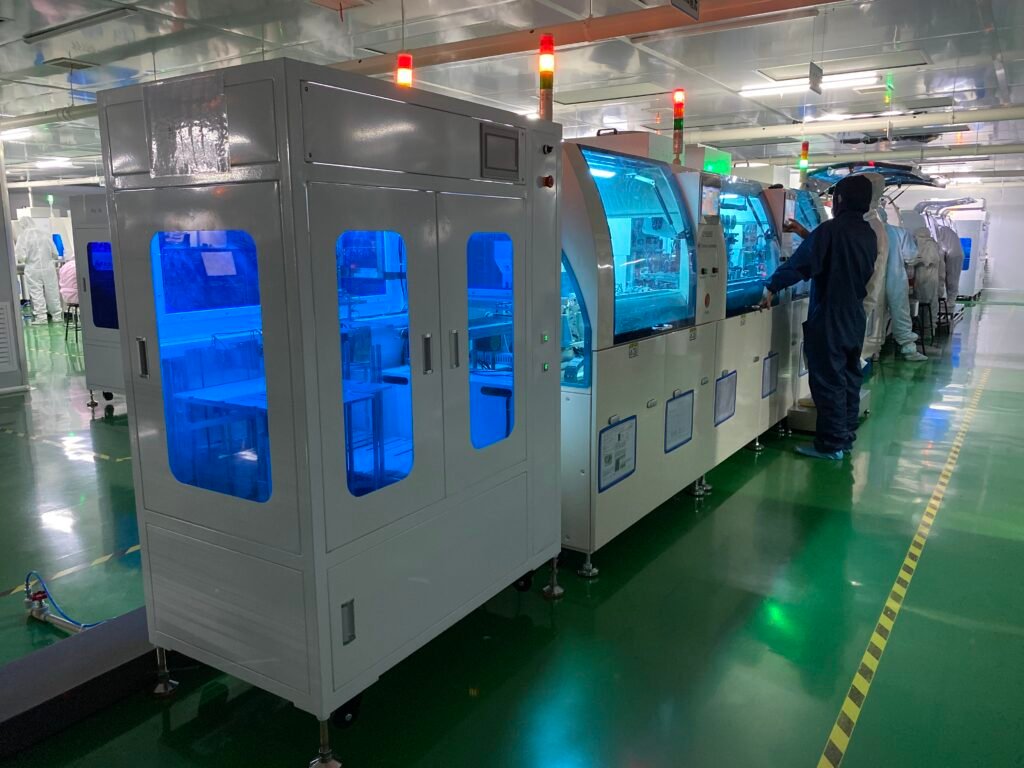

2.Polarizer Attachment
After cutting, polarizers are attached to the glass. These films are essential for controlling light direction and are a critical component of the display’s visual quality, affecting contrast, viewing angles, and brightness.

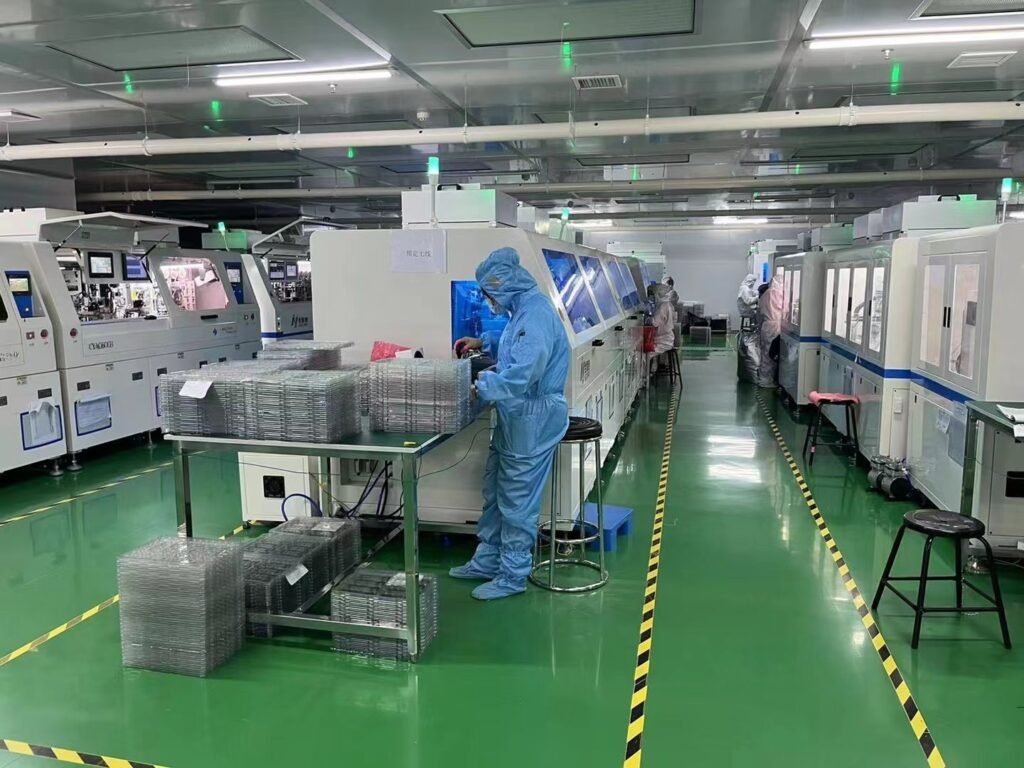

3.COG/FOG Bonding (Chip on Glass/Flex on Glass)
In the bonding process, either the Chip on Glass (COG) or Flex on Glass (FOG) technique is employed. This process involves attaching IC (integrated circuit) chips directly onto the glass panel, allowing for streamlined circuitry and contributing to the module’s overall compact design. COG/FOG bonding is highly automated at Santop, which enhances accuracy and consistency.

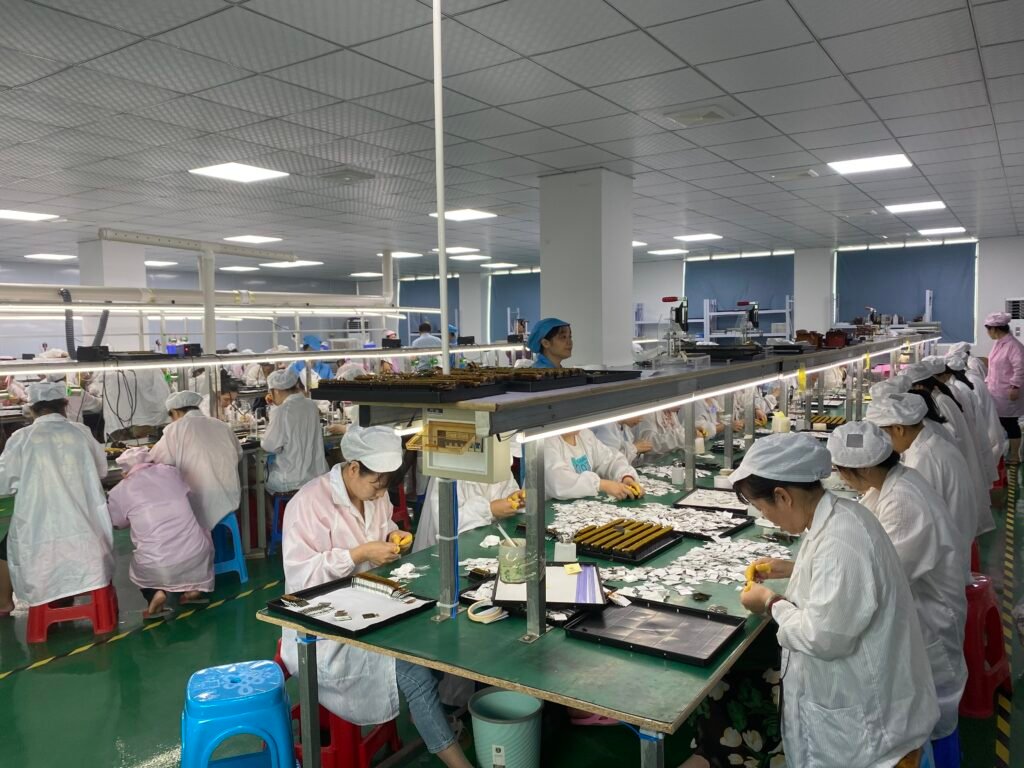

4.LCM Assembly (LCD Module Assembly)
The assembly line then brings together all components, including the glass panel, IC, and backlight, into the complete LCD module. This stage is crucial for ensuring that each component integrates seamlessly to meet both functional and visual standards.

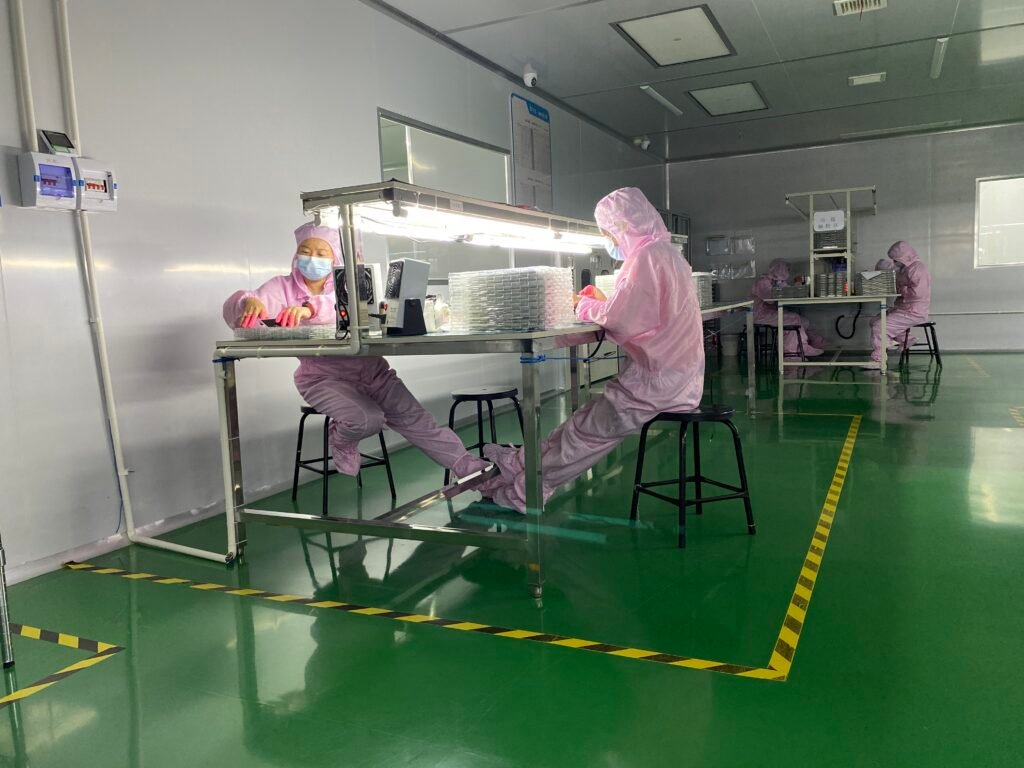

5.Quality Control and Testing
Santop places a high priority on quality. Modules undergo several layers of quality checks, including temperature and humidity testing, aging tests, and vibration resistance tests. Each module must meet stringent standards for durability, clarity, and response time before moving to the final stages.

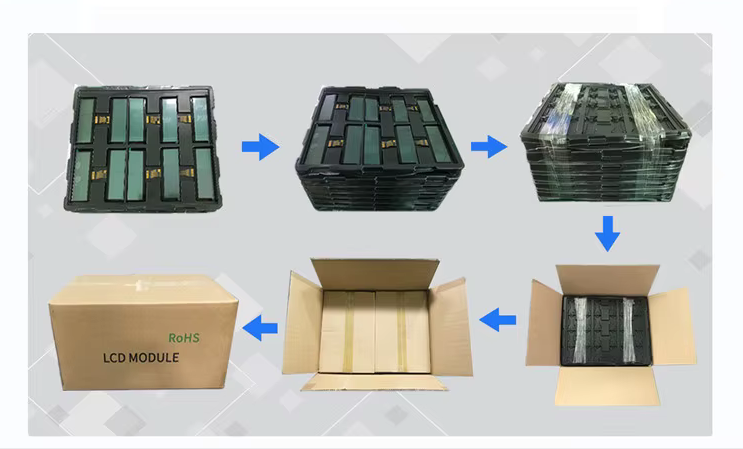

6.Packaging and Shipping
After passing all tests, the modules are carefully packaged to protect them from potential shipping damage. Santop’s logistics team then ensures timely and secure delivery to clients.
Custom TFT LCD Display to Rocket Your Brand And Business
Enhance your brand with our customized TFT LCD Display solutions. We can customize it according to your needs such as size, shape, FPC, interface,touch panel and more.
How We Control Your TFT LCD Display Quality?
From the selection of raw materials to every aspect of production, we are rigorously controlled. We use advanced equipment and exquisite craftsmanship, and strictly follow international standards.
In addition, our professional quality control team conducts inspections at every step of the process, including key indicators such as dimensional accuracy, color difference, and flatness. This ensures that every TFT LCD Display you receive meets expectations.
One Stop TFT LCD Display Manufacturing Specialist

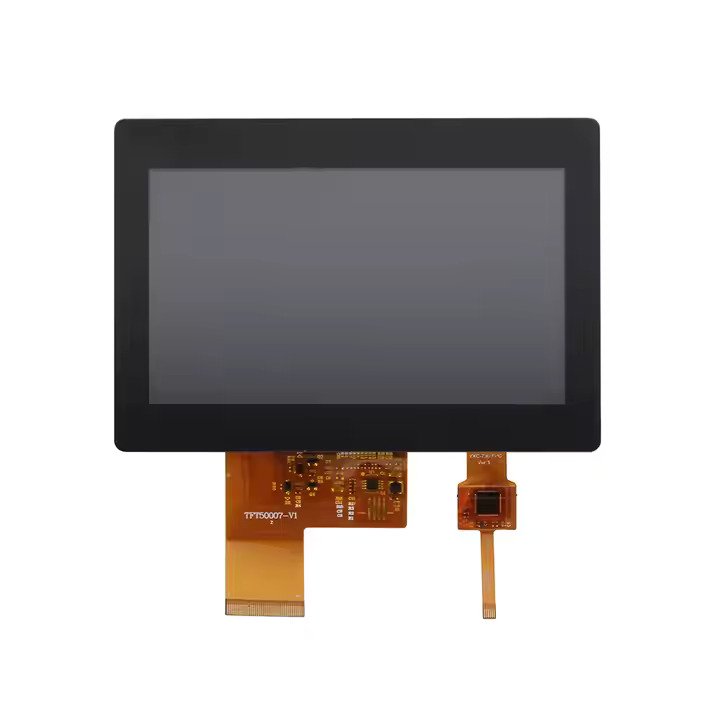

Touch Panels & Backlight Solutions
When touch interaction is key, our resistive and capacitive touch panels provide a responsive, durable, and high-precision user experience. We also offer backlighting solutions that enhance display readability and performance.
Touch Panel Options:
G+G, G+F, G+F+F structures with I2C or USB interfaces.
Anti-fingerprint, anti-reflective, and anti-scratch options available.
Backlight Solutions:
Customizable brightness and material options.
Options for low power consumption and extended lifetime.
Applications: Smart home control panels, industrial interfaces, and vehicle dashboard displays.
Santop Display will always aims to design and manufacture the most popular TFT LCD Display in the market, let’s work together and boom your business.

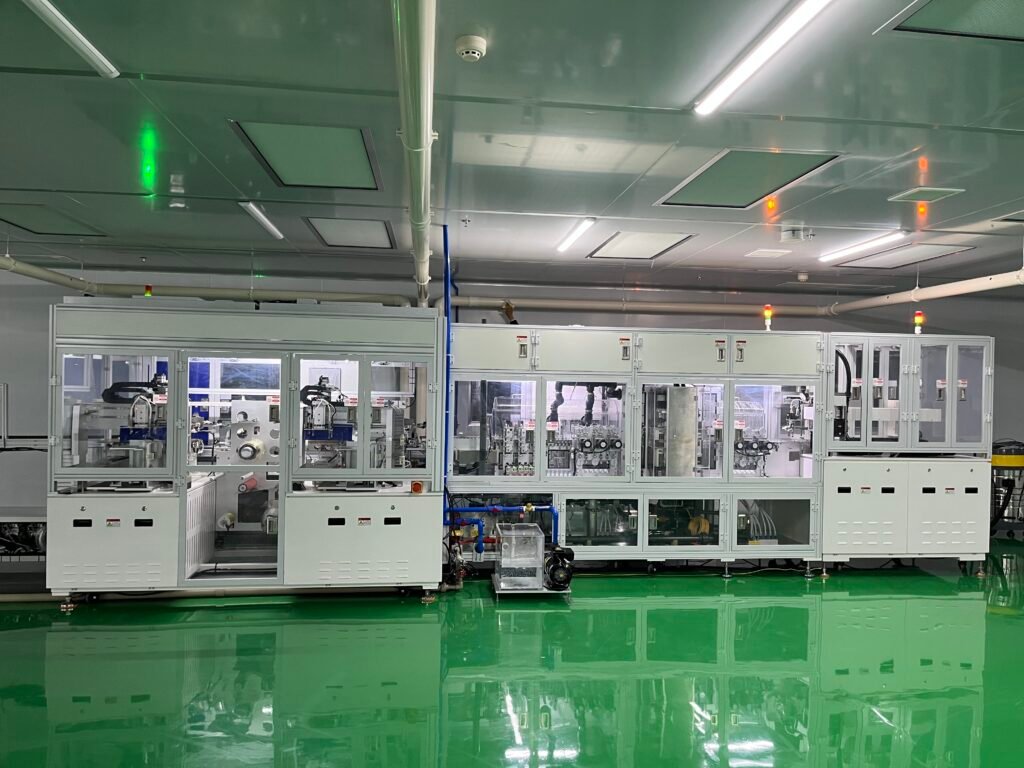

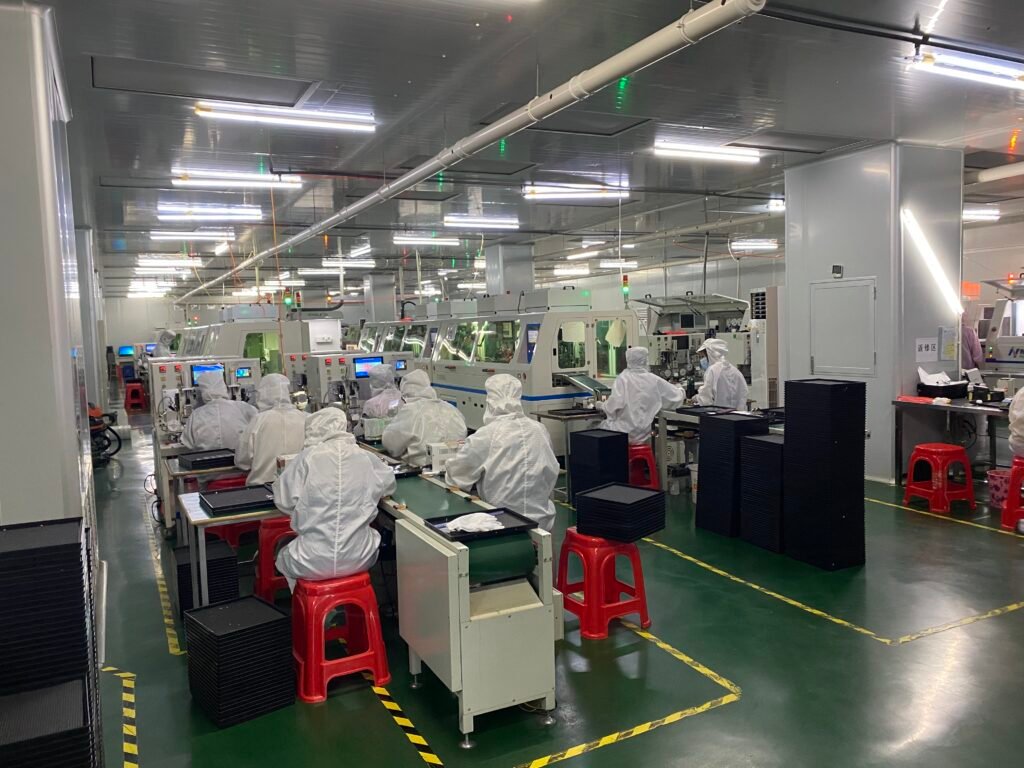

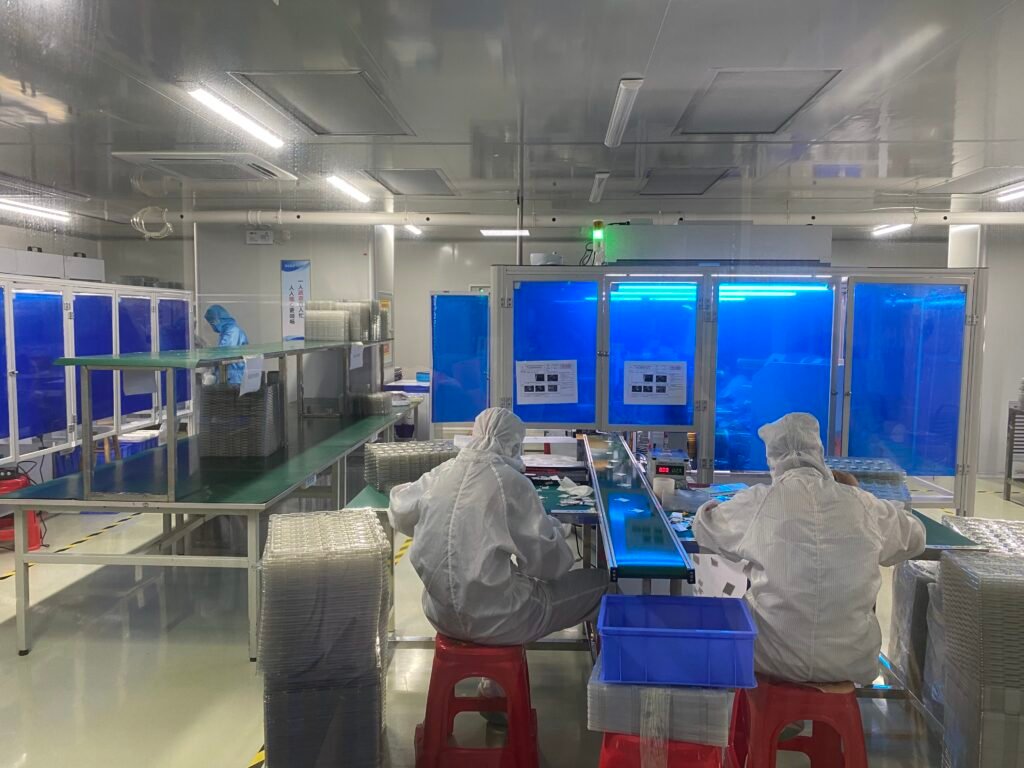

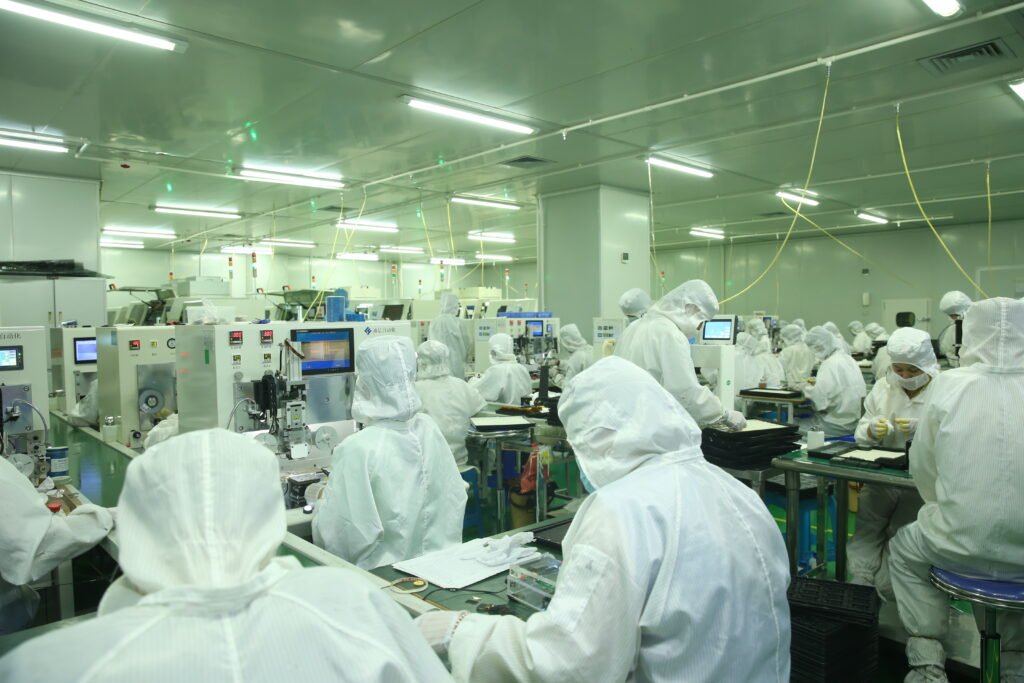

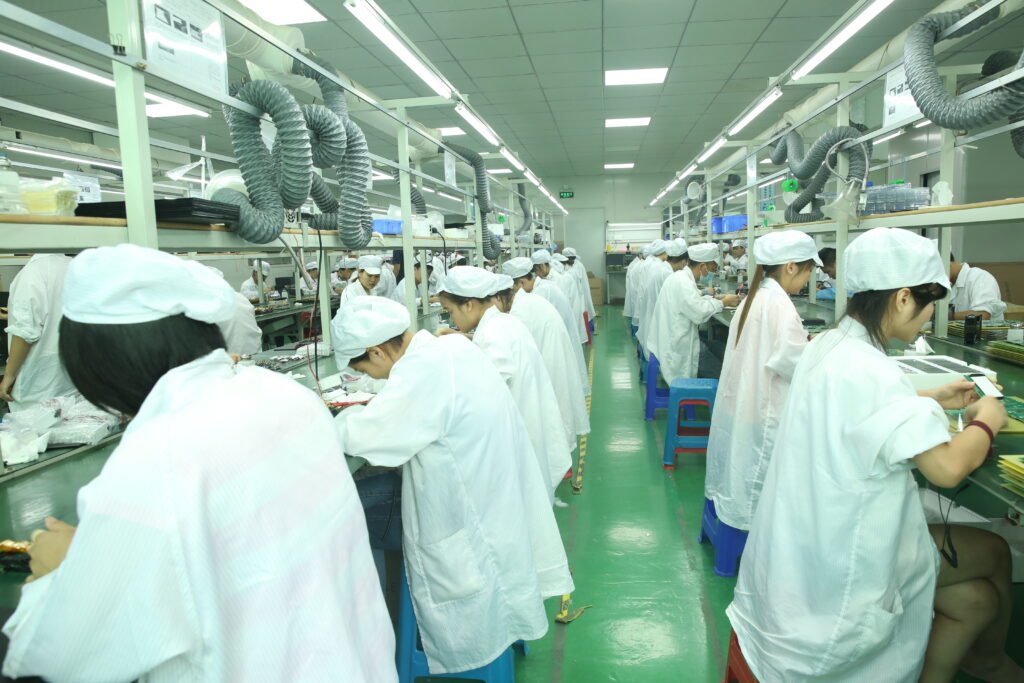

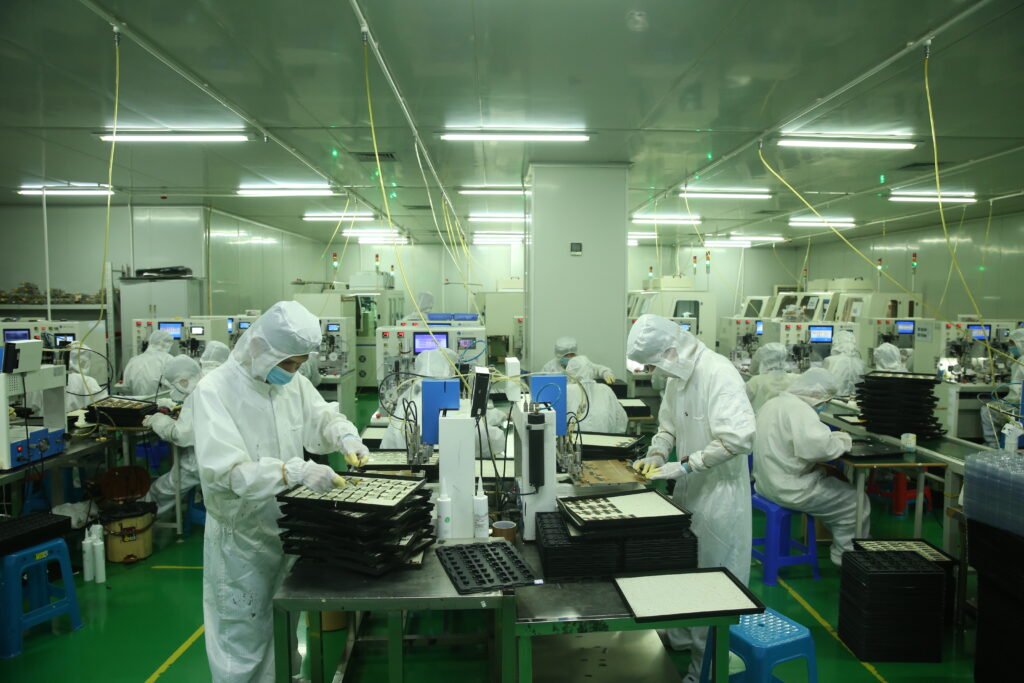

Production Workshop
FAQ
Sample lead time is typically 3–15 days, and mass production takes 3–4 weeks, depending on the customization level.
Yes. We offer options with capacitive or resistive touch screens, and touch customization is also available.
Yes. We support full customization including resolution, interface (SPI, RGB, MIPI, etc.), FPC shape, backlight, and touch panel. Just provide your idea or drawing.
Our modules support various interfaces such as SPI, RGB, MCU, MIPI DSI, LVDS, and HDMI, depending on the model.
We offer high brightness, wide-temperature, and sunlight-readable TFT displays, ideal for outdoor and industrial environments.
Our products come with a 12-month warranty. If there are any quality issues, we provide technical support or replacements based on the situation.
