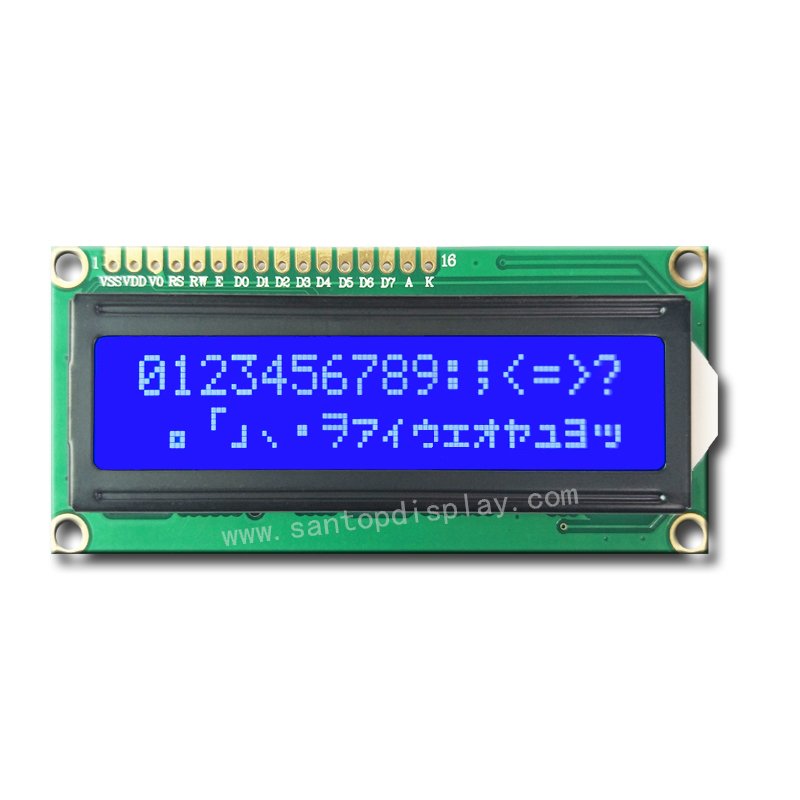

16x2 Character LCD Module
Santop’s Character LCD Modules deliver crisp, easy-to-read text with ultra-low power consumption, making them ideal for embedded systems, meters, and industrial control panels. Built to last, they offer stable performance even in tough environments.
16x2 Character LCD Module
Manufacturer: Santop
Screen Color: Blue / Yellow-Green / Gray
Backlight Color: White / Yellow-Green / RGB
Display Type: STN / FSTN,with or without an LED backlight.
Supply Voltage: 5V / 3.3V,standard type is 5V.
Viewing Angle: 6:00 / 12:00.
For any other custom requests, feel free to contact us.
Product Specification
| Manufacturer | Santop |
|---|---|
| Part Number | SCM1602A-8 |
| Display Format | 16 Characters x 2 Lines |
| Display Type | STN Yellow-Green/STN Blue/STN Gray/FSTN Gray |
| Outline Dimension(mm) | 80(W) x 36(H) x 11(T) |
| Viewing Area(mm) | 64.5 x 14.5 |
| Active Area(mm) | 55.7 x 11 |
| IC or Equivalent | AIP31066 |
| Interface | 8-bit MPU Interface |
| Connection | Pin Header |
| IC Package | COB |
| Viewing Direction | 6:00/12:00 |
| Power Supply(Typ) | 5.0V |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
