0.91 inch OLED Display
Santop’s OLED Displays offer ultra-thin, high-contrast visuals with wide viewing angles and fast response times. Built for durability and low power use, they are ideal for commercial and industrial devices such as medical instruments and smart terminals.

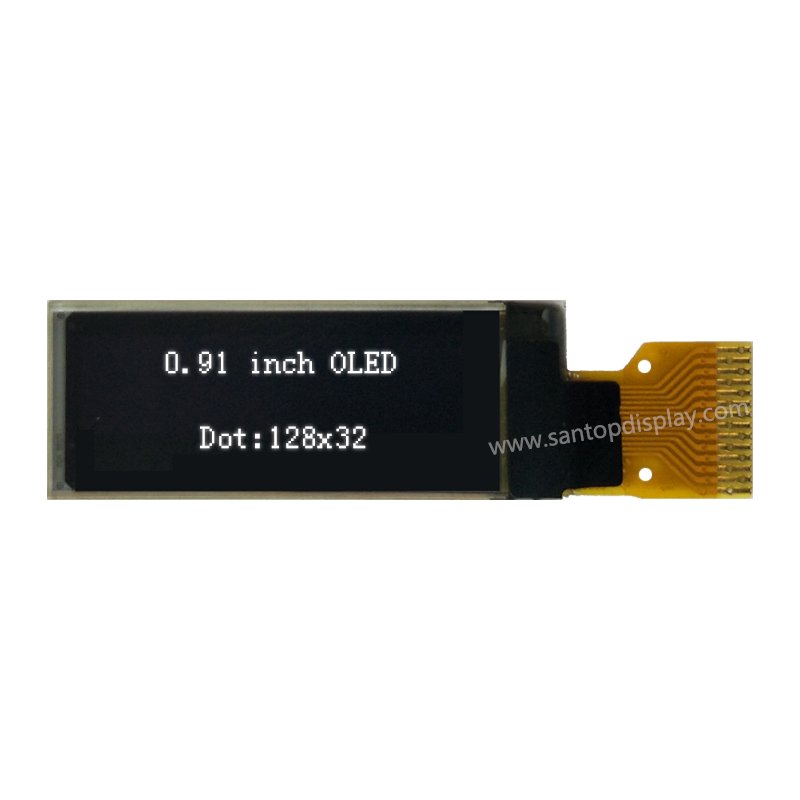

0.91 inch OLED Display
Manufacturer: Santop
Product Name: 0.91 inch OLED Display Panel 128×32 SSD1306 Parallel/SPI/IIC Interface
Resolution: 128×32
Driver IC: SSD1306
Color: White/Blue
FPC Connection Type: Soldering/socket
OLED Display 0.91″ module is an OLED 128×32 dot matrix display module with parallel, SPI & I2C Interface. Comparing to LCD, OLED screens are more competitive, which has a number of advantages such as high brightness, self-emission, high contrast ratio, slim thin outline, wide viewing angle, wide temperature range, and low power consumption.
Product Specification
| Manufacturer | Santop |
|---|---|
| Part Number | SP12832-091 |
| Dot matrix | 128x32 |
| Diagonal Size | 0.91” |
| Display Type | OLED |
| Structure | COG |
| IC or Equivalent | SSD1306 |
| Interface | I2C |
| Color | White |
| Connection | FPC |
| Connection Type | solder |
| Outline Dimension(mm) | 30 x 11.5 x 1.227 |
| Visual Area(mm) | 24.384 x 7.584 |
| Active Area(mm) | 22.384 x 5.584 |
